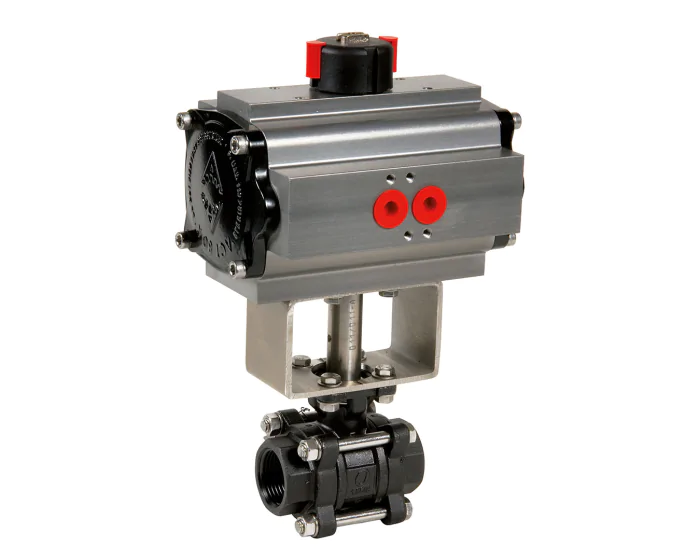

The 737XS series carbon steel ball valve has an A216WCB steel body and a CF8M carbon steel ball. It is actuated with pneumatic actuation ACTREG ADA/ASR. Steam use: PS: 15 bar.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | Steam |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF Double acting | 271202015100 | S1002125 |
€224.57
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF Spring return | 271202016100 | S1002126 |
€240.64
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF Double acting | 271203015100 | S1002127 |
€230.44
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF Spring return | 271203016101 | S1002128 |
€263.61
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF Double acting | 271204015100 | S1002129 |
€235.80
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF Spring return | 271204016101 | S1002130 |
€268.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF Double acting | 271205015100 | S1002131 |
€269.61
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF Spring return | 271205016102 | S1002132 |
€390.01
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF Double acting | 271206015101 | S1002133 |
€367.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF Spring return | 271206016103 | S1002134 |
€439.74
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF Double acting | 271207015102 | S1002135 |
€459.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF Spring return | 271207016104 | S1002136 |
€550.80
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return Welding BW | 271212016100 | S1002137 |
€240.64
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting Welding BW | 271213015100 | S1002138 |
€230.44
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting Welding BW | 271214015100 | S1002139 |
€235.80
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return Welding BW | 271215016102 | S1002141 |
€390.01
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting Welding BW | 271216015101 | S1002142 |
€367.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting Welding BW | 271217015102 | S1002143 |
€459.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return Welding BW | 271217016104 | S1002144 |
€550.80
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting Welding SW | 271232015100 | S1002145 |
€224.57
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting Welding SW | 271233015100 | S1002146 |
€260.71
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting Welding SW | 271234015100 | S1002147 |
€235.80
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting Welding SW | 271235015100 | S1002148 |
€269.61
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting Welding SW | 271236015101 | S1002149 |
€367.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting Welding SW | 271237015102 | S1002150 |
€459.00
(excl. btw)
|
add to cart |
